TWS 1L5-124BB0101
TWS

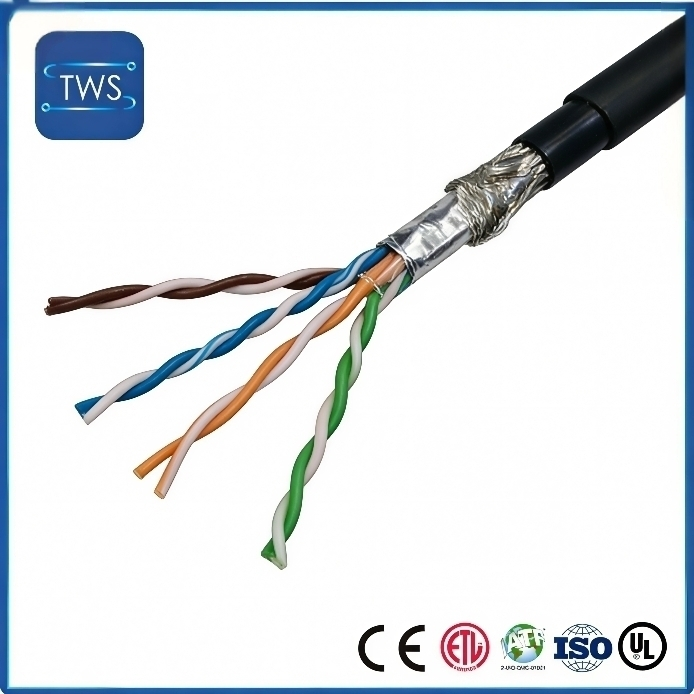

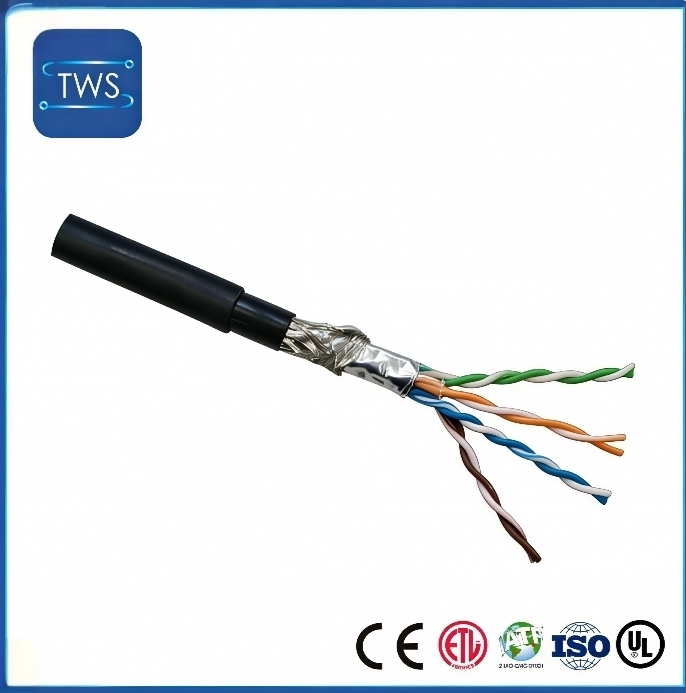

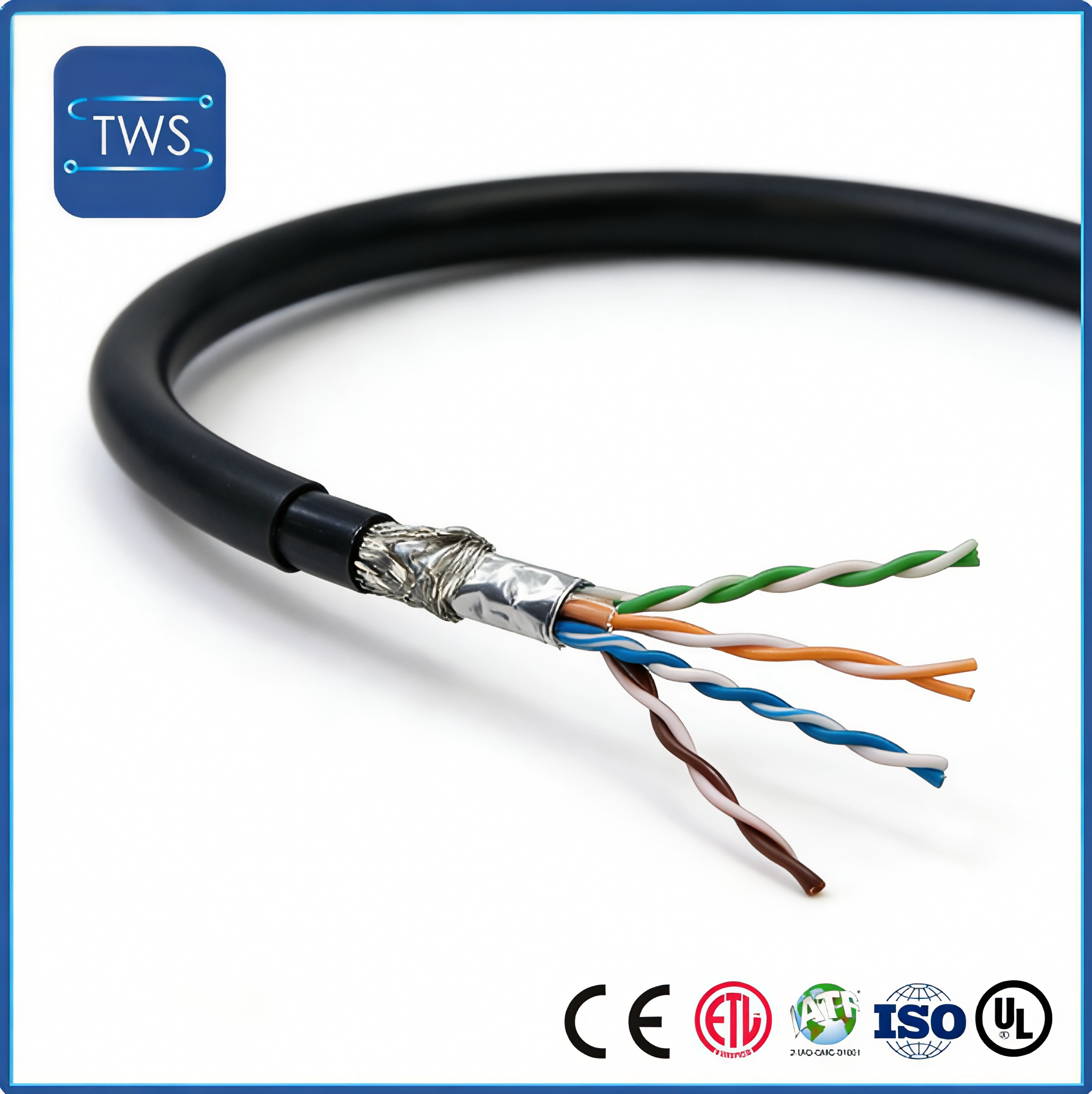

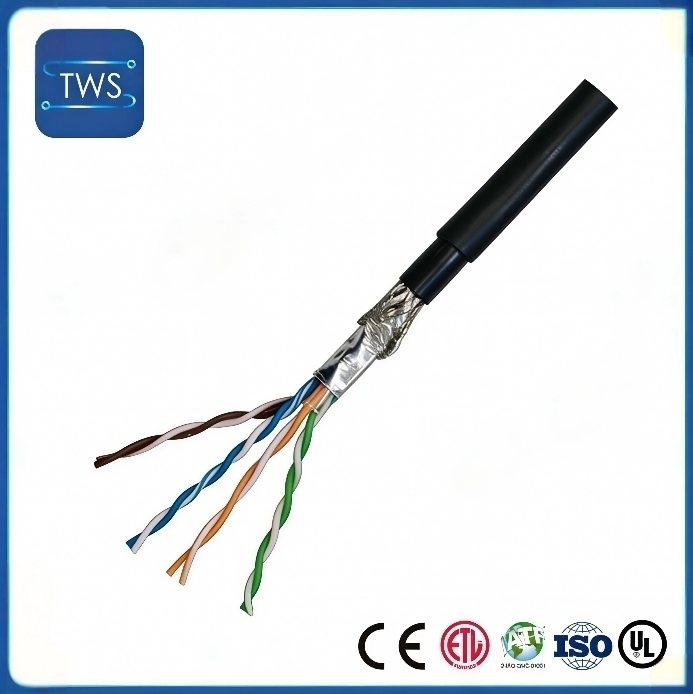

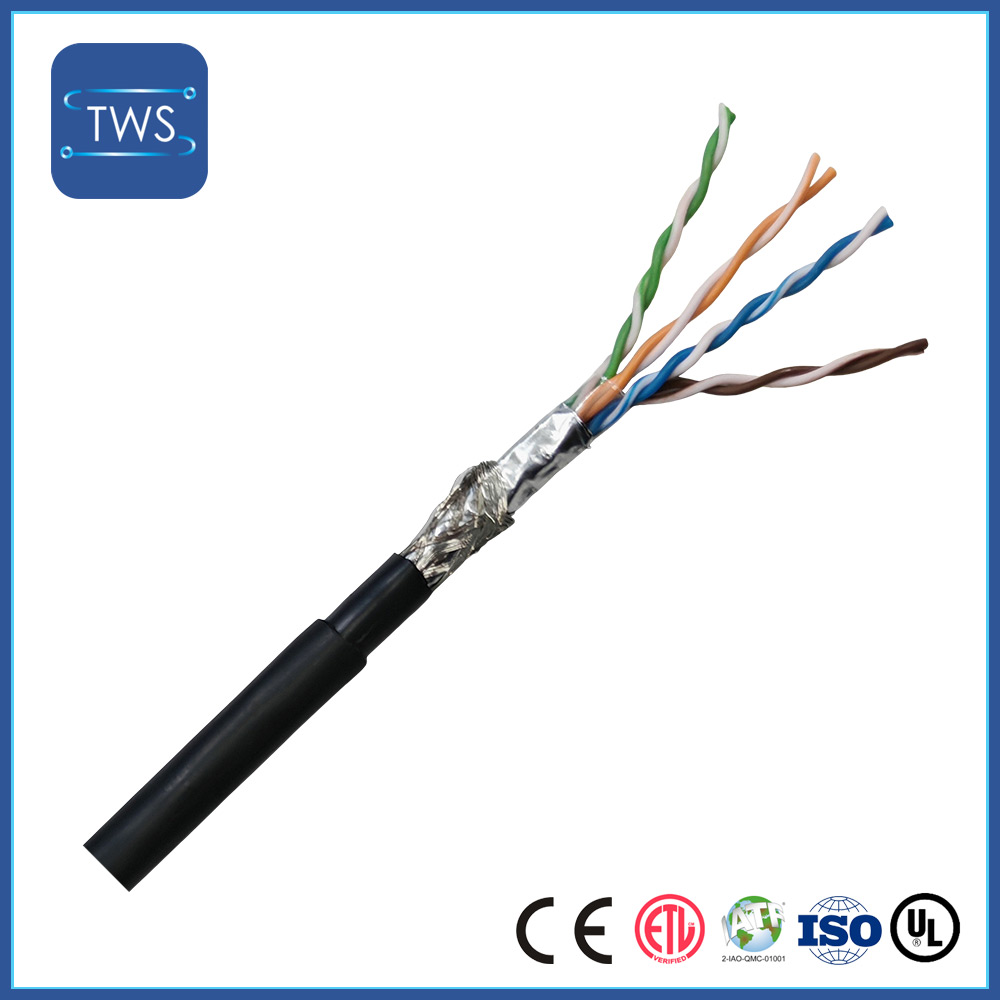

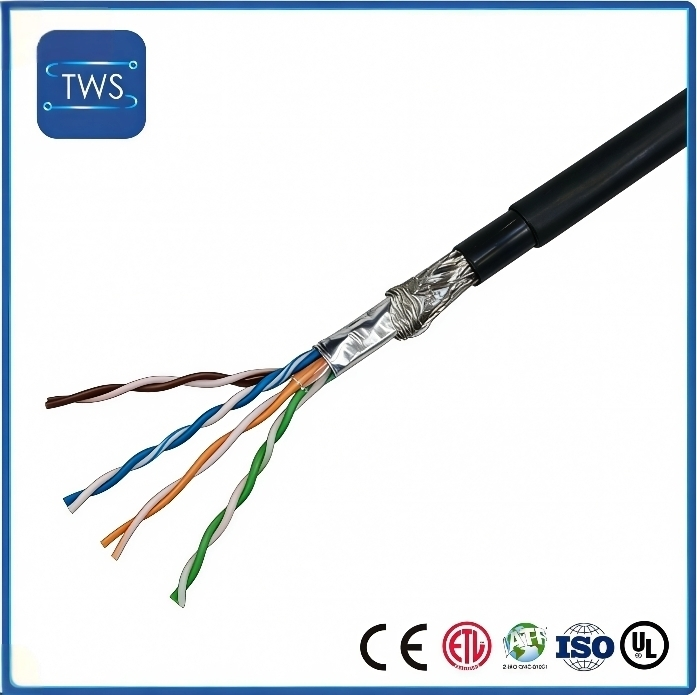

This SF/UTP Cat 5E cable (24AWG×4P) features 4-pair bare copper conductors, HDPE insulation, Al/Mylar tape shielding, and tinned copper braid. With PVC inner and PE outer jackets, it meets TIA Cat5e standards, offers stable transmission, strong anti-interference, and operates from -20℃ to 75℃, ideal for reliable Ethernet networking.
Superior Shielding: Combined Al/Mylar tape shielding (100% coverage) and tinned copper braid (65% coverage) effectively reduces electromagnetic interference (EMI) and crosstalk, ensuring stable signal transmission.
Durable Construction: Multi-layer jacket design (PVC inner + PE outer) provides excellent mechanical protection, resistance to abrasion, and environmental stability, extending service life.
High Performance: Compliant with TIA Cat 5e standards, supporting reliable data transmission up to 100 meters, suitable for high-speed network applications.
Wide Temperature Resistance: Operates stably in a temperature range of -20°C to 75°C, adapting to various harsh environmental conditions.
Precision Conductor: 24AWG bare copper conductor ensures low resistance and efficient power/signal transfer.
Function
Signal Transmission: Transmits high-speed data signals for Ethernet networks, adhering to Cat 5e specifications to support bandwidths up to 100 MHz and data rates up to 1000 Mbps (Gigabit Ethernet).
Interference Protection: The multi-layer shielding structure isolates external electromagnetic interference and internal crosstalk between pairs, maintaining signal integrity in noisy environments.
Mechanical Protection: The dual-jacket system protects internal conductors and shielding layers from physical damage, moisture, and chemical corrosion.
Identification & Installation: Color-coded pairs (Blue-White/Blue, Orange-White/Orange, Green-White/Green, Brown-White/Brown) simplify termination and installation in networking projects.
| Item | Description | |
| Conductor | Qty.(Pair) | 4P |
| Material | bare copper wire | |
| Construction | 7/0.2± 0.008 | |
| Insulation | Material | HDPE |
| Braid | Material | Tinned copper wire |
| Construction | 16/7/0.1±0.008 | |
| Jacket | Material | PE |
| O.D. | 6.80±0.15 | |
| Color( RAL) | BLACK | |
Networking Infrastructure: Used in office buildings, data centers, and campus networks for horizontal cabling, connecting workstations to network switches, routers, and patch panels.
Industrial Environments: Deployed in factories, warehouses, and production lines where EMI and physical stress are common, thanks to its robust shielding and wide temperature range.
Commercial & Residential: Suitable for small-to-medium business (SMB) networks and home networking setups, supporting internet access, IP telephony, and multimedia streaming.
Specialized Installations: Applied in security systems (CCTV, access control), audio/video distribution, and other low-voltage communication systems requiring reliable, interference-free signal transmission
 |  |  |
 |  |  |
Founded in July 2001, Tri Wire Scientifc Co.,Ltd. is a high technology enterprise with a registered capital of 20 milion RMB. lts factory of around 12,000 m2 is located in Xicheng Science and Technology Industrial Park, Hengli Town, Dongguan City, Guangdong Province.
The company has been engaged in wire and cable manufacturing over 20 years and its key products include LAN Cables, High-Frequency Cables, Cables for Medical systems, Cables for Automobiles, Cables for industry, etc. As a professional OEM/ODM service provider, Triwire has been exported its products to Europe and the United States and fond by many well-known multinational companies with products of international first-class standards.
Technological innovation and quality control are the comerstones of the company's development. Triwire is recognized as a "High Technology Enterprise" as well as a "Specialized,Refned,Characteristic,and innovative Small and Medium-Sized Enterprise (SME)" in Guangdong Province. lt is also members of the Guangdong New Energy Vehicle Industry Association, the Shenzhen Robot Special Cable Industry Association, and the Guangdong Wire and Cable industry Association. Currently, the company holds 38 patents and added utility model patents such as "Communication Cables and Electrical Equipment"in 2025, thus established a sound R&D system. Triwire has passed system certifcations including ISO9001, ATF16949, and IECQ QC080000 and product certifcations such as UL, TUV, and VDE.
