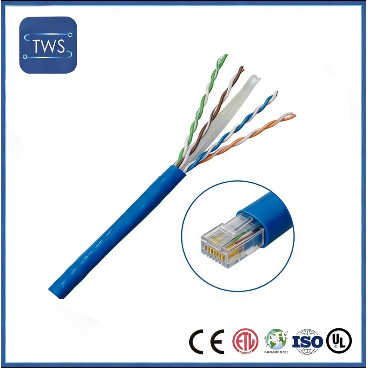

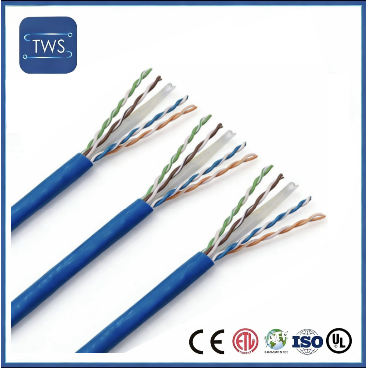

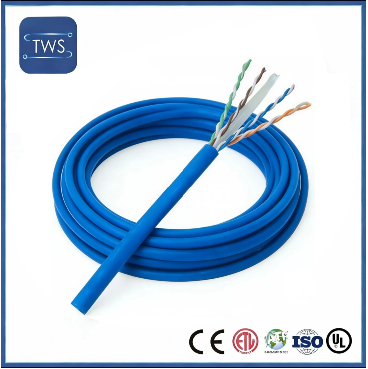

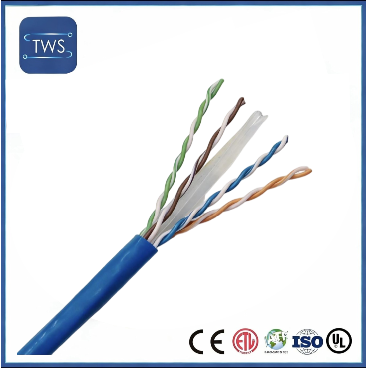

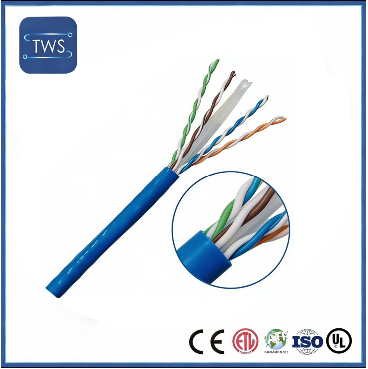

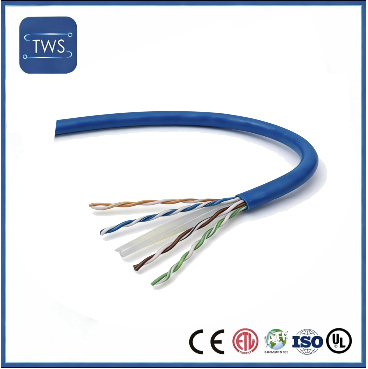

This 4-pair multi-cores cable is designed for stable power and signal transmission in a wide range of industrial and commercial environments, featuring a robust structure that balances performance, durability and ease of installation.
4 pairs of bare copper wire (7/0.20±0.008 mm) provide excellent electrical conductivity, low signal loss, and mechanical flexibility to ensure consistent performance and long service life.
HDPE Insulation of standard 0.18 mm thickness with a specified outer diameter of 0.97±0.05 mm delivers reliable electrical isolation and superior resistance to moisture for long-term stability.
Cross-section fillers consist of a round and robust cable core to prevent conductor from moving and reduce signal cross-talk between pairs.
A robust PVC jacket of standard 0.50 mm thickness with an outer diameter of 6.00±0.20 mm offers outstanding resistance to abrasion, chemicals and temperature fluctuations. It is available in a range of RAL-coded colors (Blue, Yellow, White, Black, Gray, Orange, Red, Green) to ease circuit identification and site management.
| Item | Description | |
| Conductor | Qty.(Pair) | 4 |
| Material | Bare copper wire | |
| Construction | 7/0.127± 0.008 | |
| Insulation | Material | HDPE |
| Jacket | Material | PVC |
| O.D. | 6.00±0.20 | |
| Color( RAL) | Blue, Yellow, White, Black, Gray, Orange, Red, Green | |
Building Wiring: Ideal for internal power distribution and data transmission in commercial buildings, offices, and residential complexes for simplifying circuit management by color coding
Industrial Automation: applicable to control panels, conveyor systems, and sensor networks for its resistance to oil, abrasion and mechanical stress
Security & Fire Systems: Deployed in alarm, CCTV and fire detection networks for reliable signal transmission and Safety compliance Temporary Installations: Suitable for temporary power and lighting setups as this eco-friendly color-coded jackets enable fast & error-free wiring and quick tear-down
 |  |  |
 |  |  |
Founded in July 2001, Tri Wire Scientifc Co.,Ltd. is a high technology enterprise with a registered capital of 20 milion RMB. lts factory of around 12,000 m2 is located in Xicheng Science and Technology Industrial Park, Hengli Town, Dongguan City, Guangdong Province.
The company has been engaged in wire and cable manufacturing over 20 years and its key products include LAN Cables, High-Frequency Cables, Cables for Medical systems, Cables for Automobiles, Cables for industry, etc. As a professional OEM/ODM service provider, Triwire has been exported its products to Europe and the United States and fond by many well-known multinational companies with products of international first-class standards.
Technological innovation and quality control are the comerstones of the company's development. Triwire is recognized as a "High Technology Enterprise" as well as a "Specialized,Refned,Characteristic,and innovative Small and Medium-Sized Enterprise (SME)" in Guangdong Province. lt is also members of the Guangdong New Energy Vehicle Industry Association, the Shenzhen Robot Special Cable Industry Association, and the Guangdong Wire and Cable industry Association. Currently, the company holds 38 patents and added utility model patents such as "Communication Cables and Electrical Equipment"in 2025, thus established a sound R&D system. Triwire has passed system certifcations including ISO9001, ATF16949, and IECQ QC080000 and product certifcations such as UL, TUV, and VDE.
Q1: How can I place an order?
A: You can contact us by email about your order details, or place order online.
Q2: Does your company provide OEM&ODM services?
A: Yes we can produce cables by your samples or technical drawings.
Q3: Does your company test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q4: Do you have some discounts?
A: Sure, the price is negotiable. We will definitely give a discount based on your annual order.
Q5: How long is your delivery time?
A: According to your order quantity and destinations
Q6: What is your terms of payment?
A: T/T 30% as deposit, and 100% before delivery.
