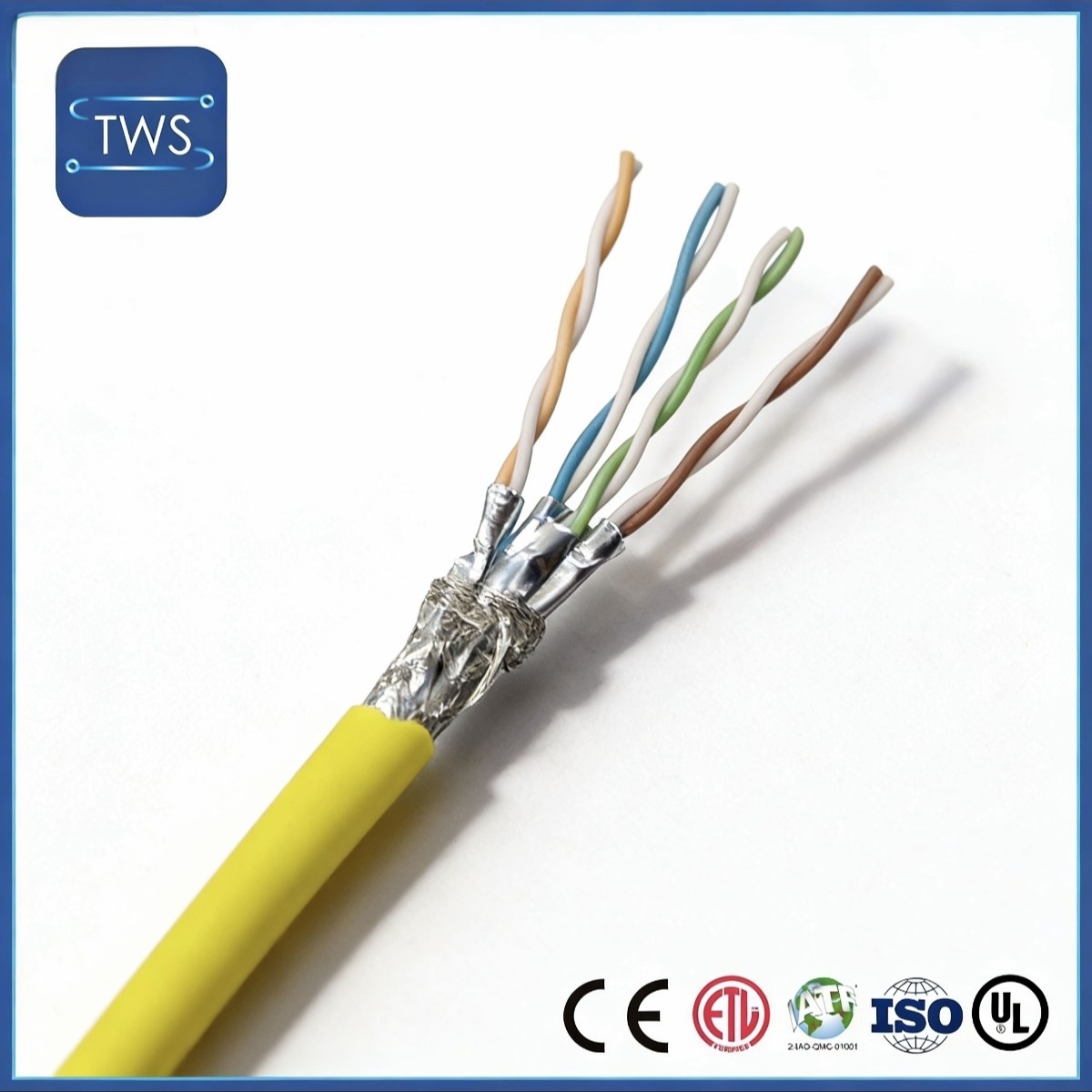

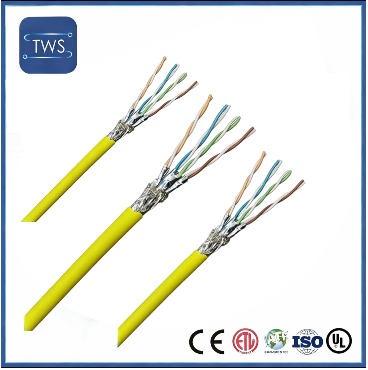

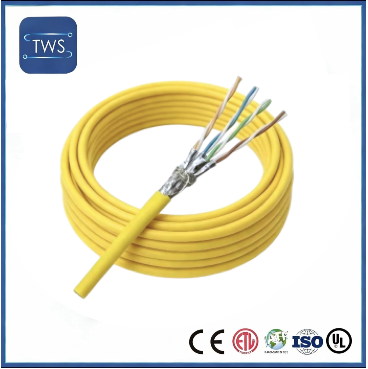

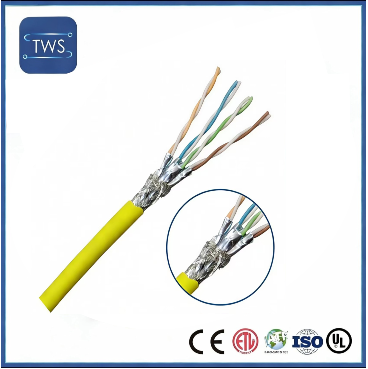

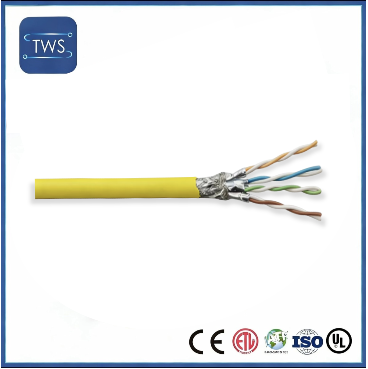

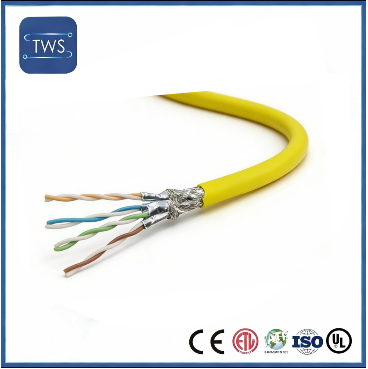

This 4-pair shielded cable is designed for high-speed, interference-free data transmission in demanding indoor and outdoor environments, featuring advanced shielding technology with a flame-retardant, eco-friendly design.
4 pairs of bare copper wire (7/0.127±0.008 mm) enable excellent electrical conductivity, low signal attenuation, and mechanical flexibility to ensure consistent performance.
foamed PE insulation of standard 0.20 mm thickness with a specified outer diameter of 0.85±0.03 mm ensures minimized signal loss and high-frequency transmission and its color-coded cross-section simplifies installation and ease phase identification.
Al/Mylar tape shield (25% overlap)with a tinned copper wire braid (16/5/0.10±0.008 mm, 55% coverage ) creates a dual-layers protection from electromagnetic interference (EMI) and radio frequency interference (RFI) , enabling reliable signal integrity in noisy environments.
A LSZH (Low Smoke Zero Halogen) jacket of standard 0.45 mm thickness with an outer diameter of 5.20±0.20 mm is flame-retardant with minimal smoke and toxic fumes in case of fire and resists abrasion, UV radiation, and temperature fluctuations as well. It is available in multiple RAL-coded colors (Yellow, Blue, Red, Green, Gray, Black, White, Purple) to simplify circuit identification and site safety management.
| Item | Description | |
| Conductor | Qty.(Pair) | 4 |
| Material | Bare copper wire | |
| Construction | 7/0.127± 0.008 | |
| Insulation | Material | Foamed PE |
| Braid | Material | Tinned copper wire |
| Construction | 16/5/0.10±0.008 | |
| Jacket | Material | LSZH |
| O.D. | 5.20±0.20 | |
| Color( RAL) | Yellow, Blue, Red, Green, Gray, Balck, White, Purple(sample) | |
Data Centers : Ideal for backbone wiring and patch cabling for high-speed transmission, EMI shielding, and fire safety
Building construction : applicable to structured cabling systems in commercial offices, hospitals, and schools, ensuring reliable Ethernet and telecommunication links.
Public Transportation : Deployed in railway and metro signaling systems for superior properties and robust shielding of LSZH to realize safe, interference-free performance in transit environments
Industrial Networks : Suitable for PLC systems, industrial Ethernet, and sensor networks for resistance to mechanical stress, EMI and temperature extremes
Public Venues : applied to airports, stadiums, and shopping malls for low-smoke and flame-retardant cables and safety compliance
 |  |  |
 |  |  |
Founded in July 2001, Tri Wire Scientifc Co.,Ltd. is a high technology enterprise with a registered capital of 20 milion RMB. lts factory of around 12,000 m2 is located in Xicheng Science and Technology Industrial Park, Hengli Town, Dongguan City, Guangdong Province.
The company has been engaged in wire and cable manufacturing over 20 years and its key products include LAN Cables, High-Frequency Cables, Cables for Medical systems, Cables for Automobiles, Cables for industry, etc. As a professional OEM/ODM service provider, Triwire has been exported its products to Europe and the United States and fond by many well-known multinational companies with products of international first-class standards.
Technological innovation and quality control are the comerstones of the company's development. Triwire is recognized as a "High Technology Enterprise" as well as a "Specialized,Refned,Characteristic,and innovative Small and Medium-Sized Enterprise (SME)" in Guangdong Province. lt is also members of the Guangdong New Energy Vehicle Industry Association, the Shenzhen Robot Special Cable Industry Association, and the Guangdong Wire and Cable industry Association. Currently, the company holds 38 patents and added utility model patents such as "Communication Cables and Electrical Equipment"in 2025, thus established a sound R&D system. Triwire has passed system certifcations including ISO9001, ATF16949, and IECQ QC080000 and product certifcations such as UL, TUV, and VDE.
Q1: How can I place an order?
A: You can contact us by email about your order details, or place order online.
Q2: Does your company provide OEM&ODM services?
A: Yes we can produce cables by your samples or technical drawings.
Q3: Does your company test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q4: Do you have some discounts?
A: Sure, the price is negotiable. We will definitely give a discount based on your annual order.
Q5: How long is your delivery time?
A: According to your order quantity and destinations
Q6: What is your terms of payment?
A: T/T 30% as deposit, and 100% before delivery.
