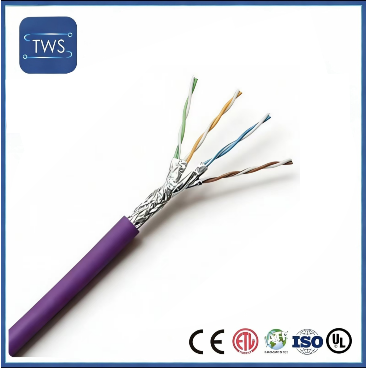

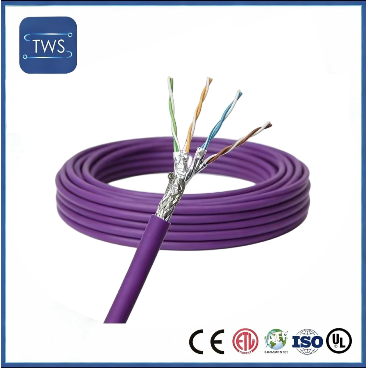

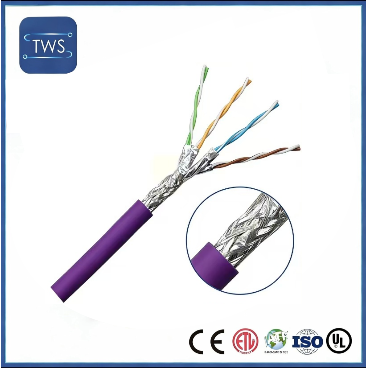

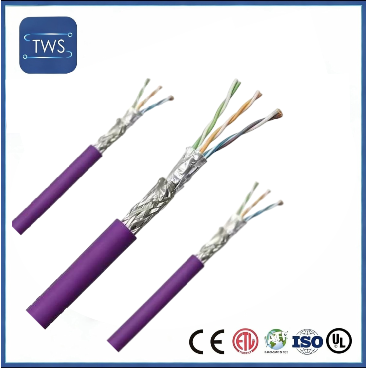

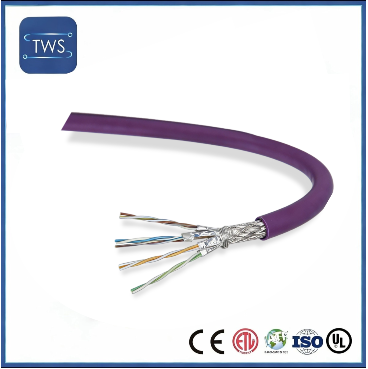

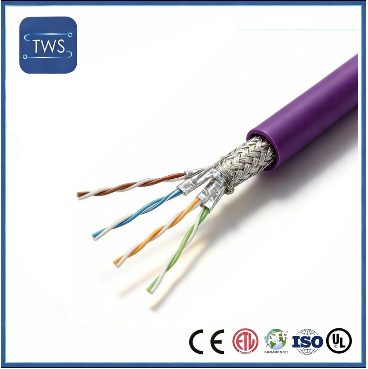

This 4-pair shielded cable is designed for high-speed, interference-free data transmission in demanding industrial and commercial environments, featuring robust shielding ,low-loss insulation and a durable jacket to deliver consistent performance.
4 pairs of bare copper wire (7/0.16±0.008 mm) provide excellent electrical conductivity, low signal attenuation and mechanical flexibility to ensure reliable power and data transfer.
Foamed PE insulation of standard 0.25 mm thickness with a specified outer diameter of 1.03±0.05 mm enable to minimize signal loss and support high-frequency transmission and its color-coded cross-section simplifies installation and ease phase identification .
Al/Mylar tape of 100% coverage with a tinned copper wire braid (16/8/0.10±0.008 mm, 65% coverage) creates a dual-layers protection against electromagnetic interference (EMI) and radio frequency interference (RFI) to gain superior signal integrity in noisy environments.
A heavy-duty PVC jacket of standard 0.90 mm thickness with an outer diameter of 7.1±0.20 mm offers superior resistance to abrasion, oil and temperature fluctuations and this sheath in dual color of black and purple ensures easy circuit identification.
| Item | Description | |
| Conductor | Qty.(Pair) | 4 |
| Material | Bare copper wire | |
| Construction | 7/0.16± 0.008 | |
| Insulation | Material | Foamed PE |
| Braid | Material | Tinned copper wire |
| Construction | 16/8/0.10±0.008 | |
| Jacket | Material | PVC |
| O.D. | 7.1±0.20 | |
| Color( RAL) | Balck, Purple | |
Industrial Automation: Ideal for PLC systems, servo motor wiring, and industrial Ethernet networks for resistance to EMI, vibration and mechanical stress
Commercial Buildings: applicable to structured cabling in offices, data centers and retail spaces for reliable high-speed data and voice transmission
Security & Surveillance: Deployed in CCTV and access control systems requiring interference-free signal transmission for clear video and data.
Transportation & Logistics: applied to conveyor systems and automated guided vehicles (AGVs) for its durable structure and shielding property enabling stable performance in dynamic environments
Outdoor Installations: Suitable for outdoor telecommunication links and public networks, where the PVC jacket provides protection against moisture and UV radiation
 |  |  |
 |  |  |
Founded in July 2001, Tri Wire Scientifc Co.,Ltd. is a high technology enterprise with a registered capital of 20 milion RMB. lts factory of around 12,000 m2 is located in Xicheng Science and Technology Industrial Park, Hengli Town, Dongguan City, Guangdong Province.
The company has been engaged in wire and cable manufacturing over 20 years and its key products include LAN Cables, High-Frequency Cables, Cables for Medical systems, Cables for Automobiles, Cables for industry, etc. As a professional OEM/ODM service provider, Triwire has been exported its products to Europe and the United States and fond by many well-known multinational companies with products of international first-class standards.
Technological innovation and quality control are the comerstones of the company's development. Triwire is recognized as a "High Technology Enterprise" as well as a "Specialized,Refned,Characteristic,and innovative Small and Medium-Sized Enterprise (SME)" in Guangdong Province. lt is also members of the Guangdong New Energy Vehicle Industry Association, the Shenzhen Robot Special Cable Industry Association, and the Guangdong Wire and Cable industry Association. Currently, the company holds 38 patents and added utility model patents such as "Communication Cables and Electrical Equipment"in 2025, thus established a sound R&D system. Triwire has passed system certifcations including ISO9001, ATF16949, and IECQ QC080000 and product certifcations such as UL, TUV, and VDE.
