TWS 1L5-226166901
TWS

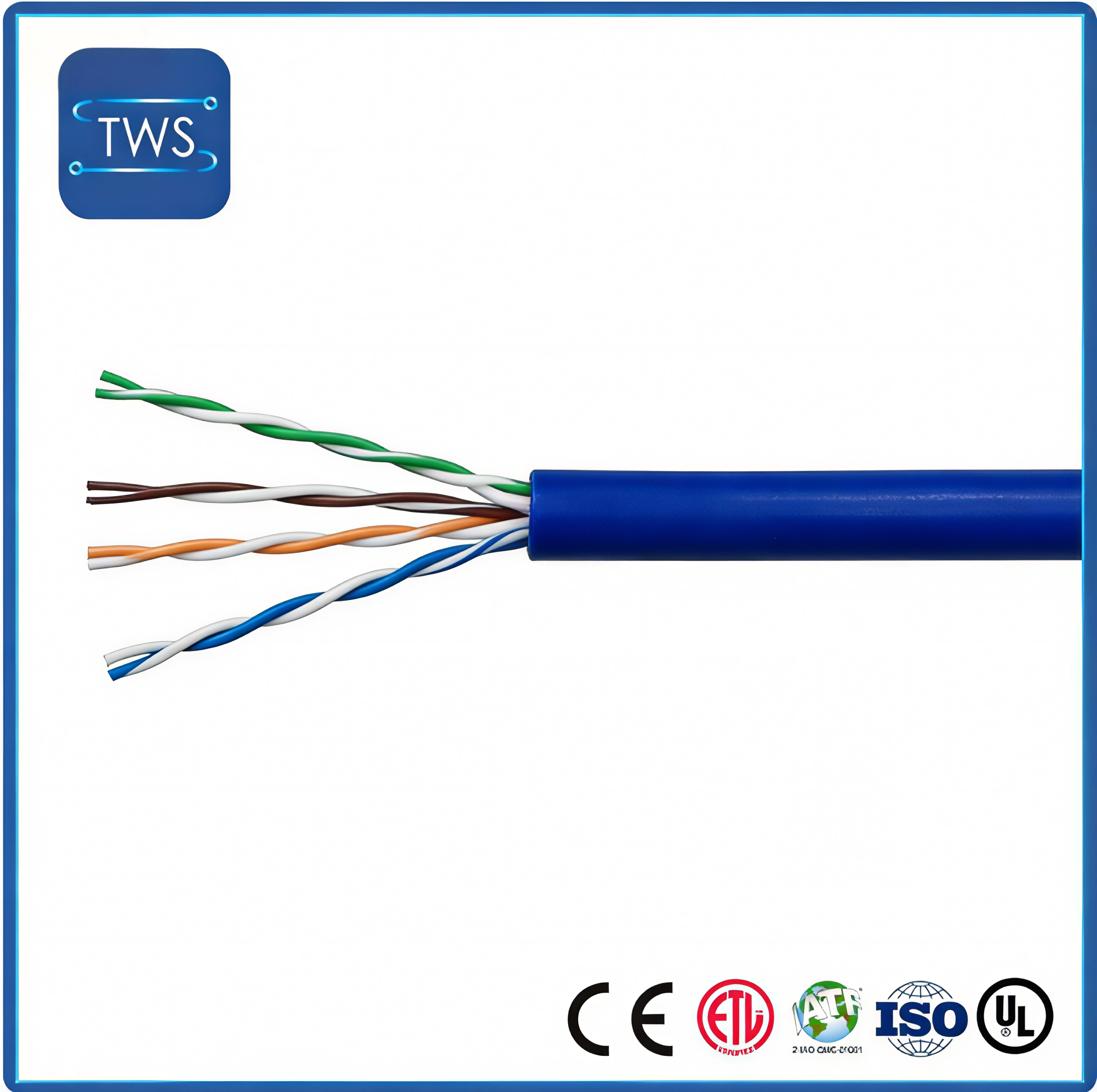

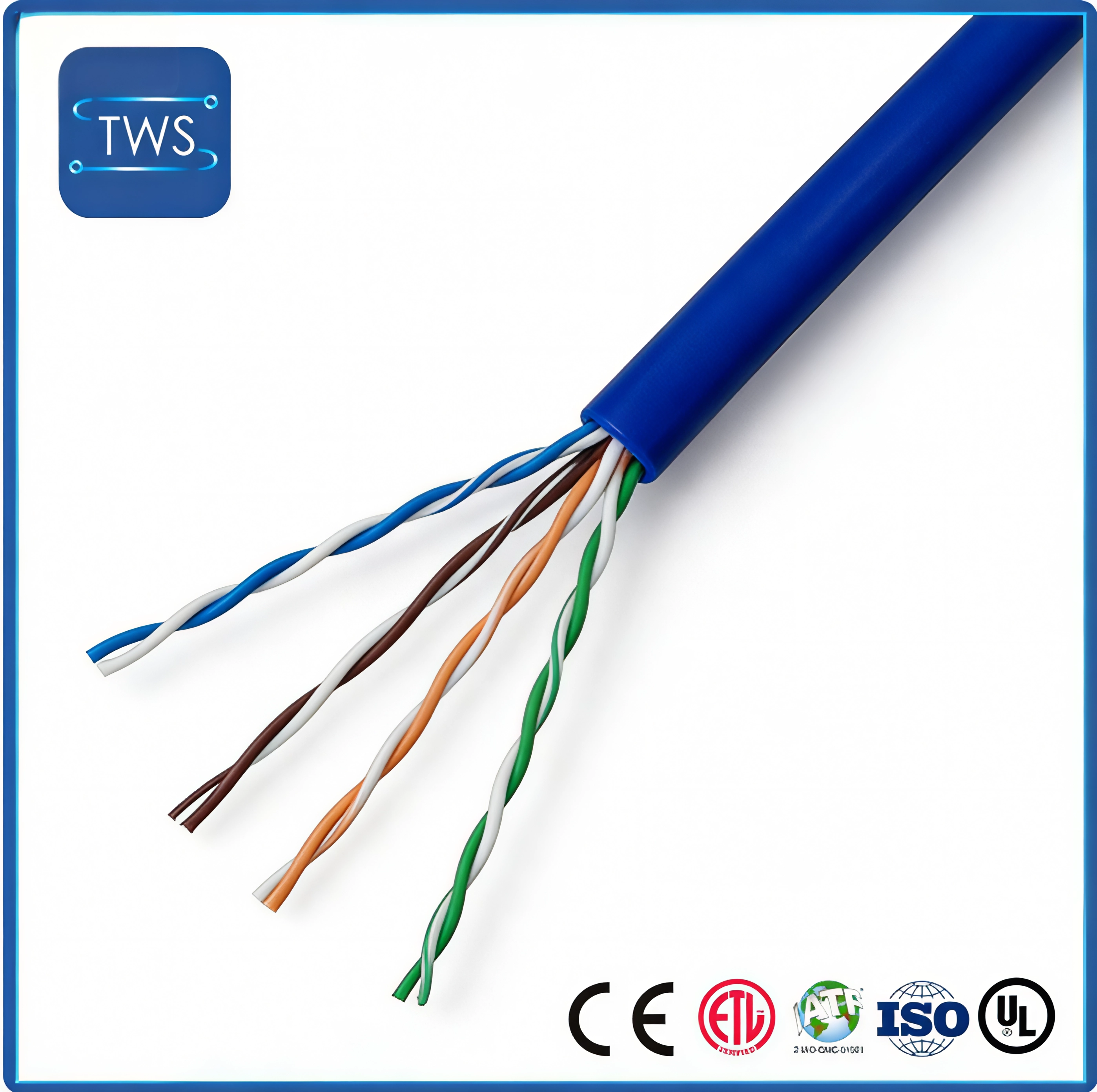

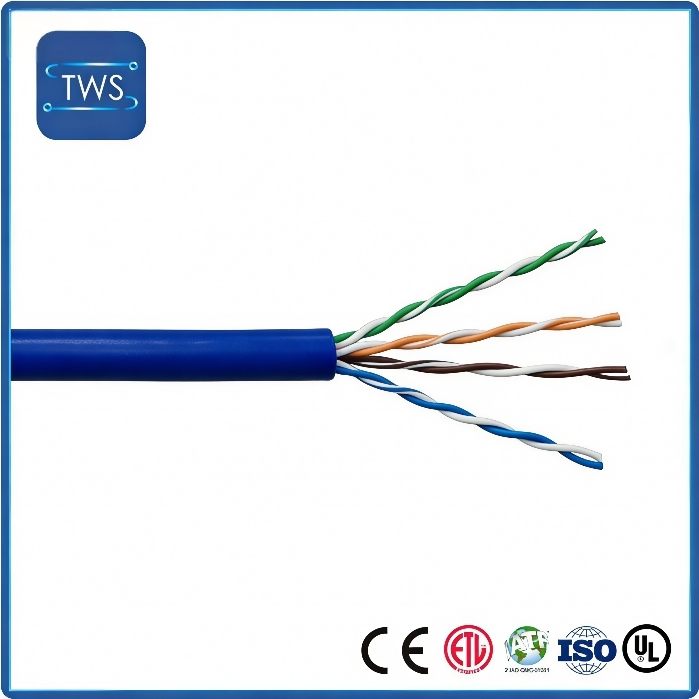

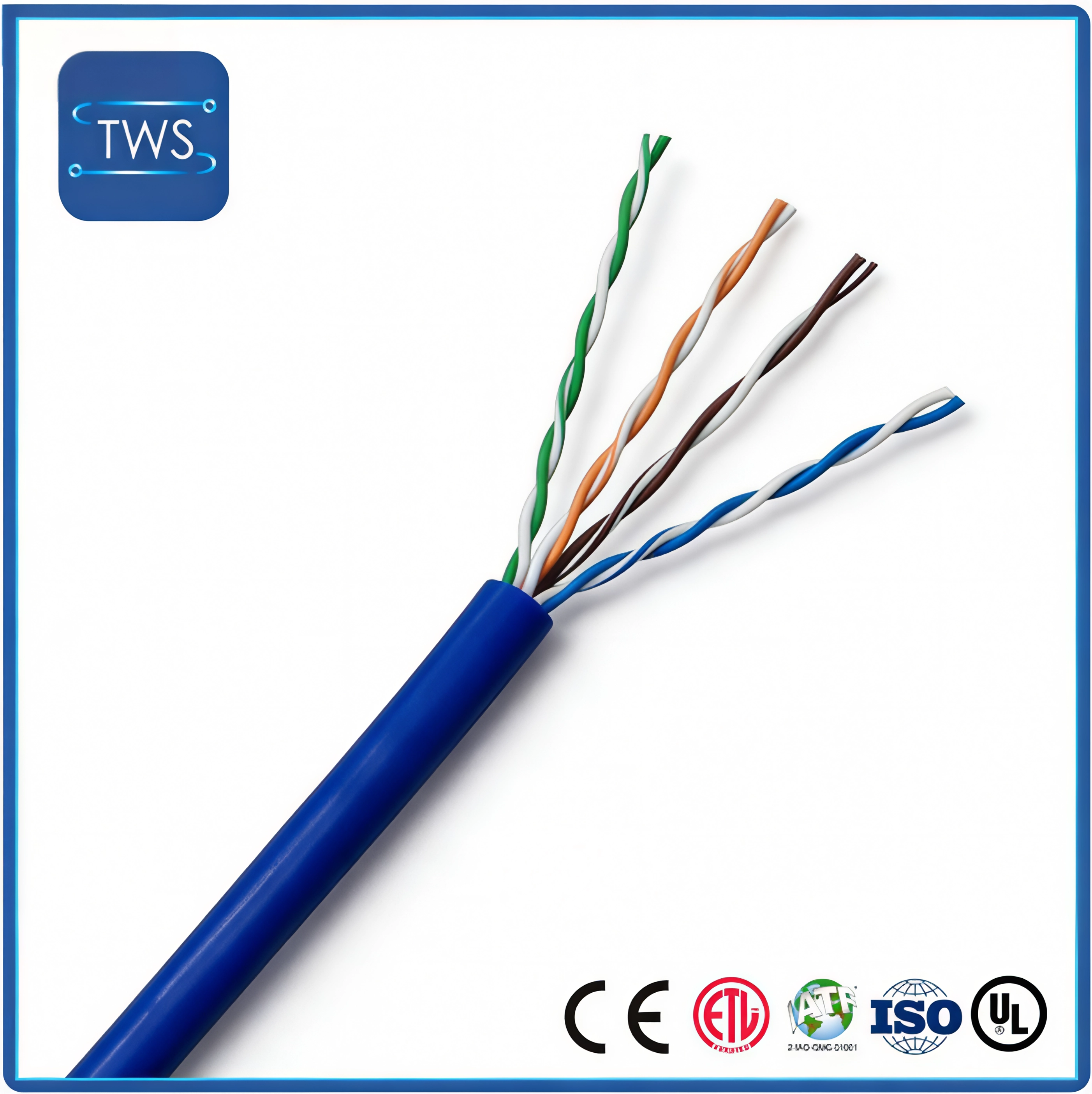

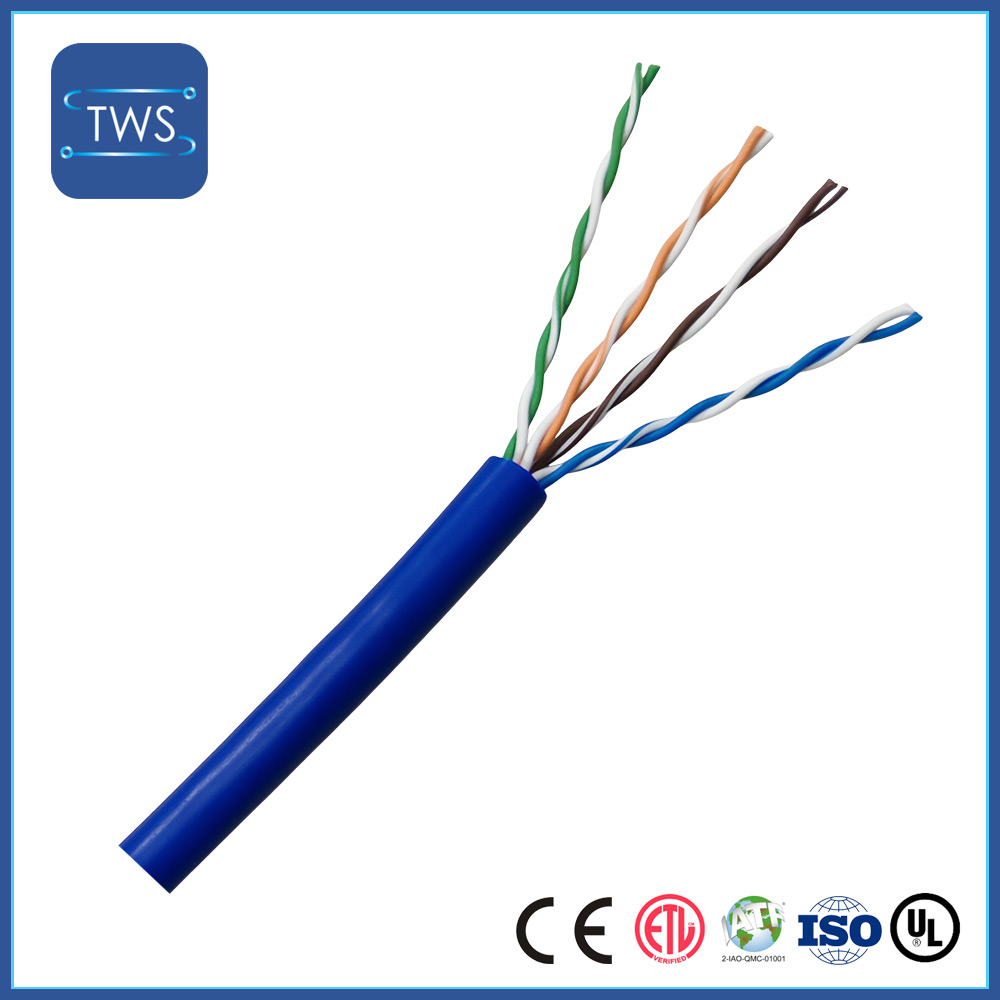

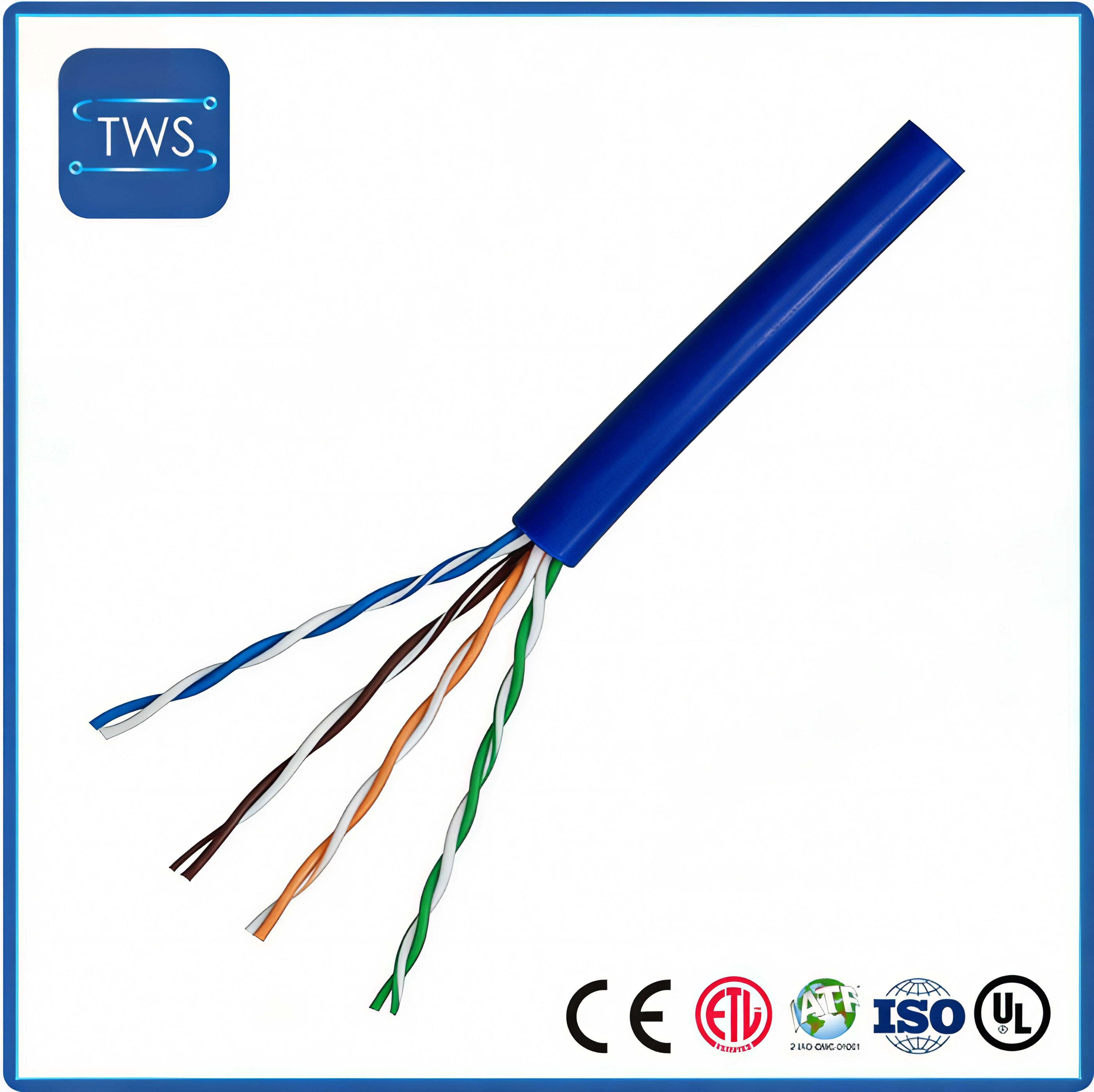

This is a UTP Cat 5E Cable (26AWG×4P) with 4 pairs of tinned copper conductors. It features HDPE insulation (nominal thickness 0.14 mm, O.D. 0.78±0.05 mm) and a blue PVC outer jacket (nominal thickness 0.90 mm, O.D. 6.0±0.15 mm, PANTONE 661C). Compliant with ANSI/TIA-568.2-D, it meets Fluke CAT5e channel test standards (1~30M), with conductor resistance ≤150.0 ohm/km at 20°C, characteristic impedance 100±10 ohm, and VW-1 flame resistance.
Reliable Conductor: 26AWG tinned copper wire ensures low resistance and stable signal transmission, with corrosion resistance for long-term use.
Standard Compliance: Fully meets ANSI/TIA-568.2-D and Fluke CAT5e channel test requirements, guaranteeing compatibility and performance.
Durable Jacket: Blue PVC outer jacket (PANTONE 661C) provides excellent mechanical protection and visual identification.
Safety Performance: Passes VW-1 flame test, enhancing fire safety in installations.
Precision Insulation: HDPE insulation minimizes signal loss and crosstalk, supporting high-speed data transmission.
Function
High-Speed Data Transmission: Supports CAT5e specifications, enabling bandwidth up to 100 MHz and data rates up to 1000 Mbps (Gigabit Ethernet).
Signal Integrity: HDPE insulation and UTP structure reduce crosstalk and signal attenuation, ensuring clear data transfer.
Safety & Durability: PVC jacket and VW-1 flame resistance protect against physical damage and fire risks.
Easy Installation: Color-coded pairs (Blue-White/Blue, Orange-White/Orange, Green-White/Green, Brown-White/Brown) simplify termination and wiring.
| Item | Description | |
| Conductor | Qty.(Pair) | 4P |
| Material | Tinned copper wire | |
| Construction | 7/0.16± 0.008 | |
| Insulation | Material | HDPE |
| Jacket | Material | PVC |
| O.D. | 6.0±0.15 | |
| Color( RAL) | BLUE | |
Commercial Networking: Ideal for office buildings, small businesses, and campus networks, connecting workstations, switches, and routers.
Residential Use: Suitable for home networking, supporting internet access, IPTV, and smart home devices.
Light Industrial Environments: Deployed in warehouses or retail spaces where moderate mechanical protection and flame resistance are required.
Low-Voltage Systems: Used in security systems (CCTV, access control) and audio/video distribution for reliable signal transmission.
 |  |  |
 |  |  |
Founded in July 2001, Tri Wire Scientifc Co.,Ltd. is a high technology enterprise with a registered capital of 20 milion RMB. lts factory of around 12,000 m2 is located in Xicheng Science and Technology Industrial Park, Hengli Town, Dongguan City, Guangdong Province.
The company has been engaged in wire and cable manufacturing over 20 years and its key products include LAN Cables, High-Frequency Cables, Cables for Medical systems, Cables for Automobiles, Cables for industry, etc. As a professional OEM/ODM service provider, Triwire has been exported its products to Europe and the United States and fond by many well-known multinational companies with products of international first-class standards.
Technological innovation and quality control are the comerstones of the company's development. Triwire is recognized as a "High Technology Enterprise" as well as a "Specialized,Refned,Characteristic,and innovative Small and Medium-Sized Enterprise (SME)" in Guangdong Province. lt is also members of the Guangdong New Energy Vehicle Industry Association, the Shenzhen Robot Special Cable Industry Association, and the Guangdong Wire and Cable industry Association. Currently, the company holds 38 patents and added utility model patents such as "Communication Cables and Electrical Equipment"in 2025, thus established a sound R&D system. Triwire has passed system certifcations including ISO9001, ATF16949, and IECQ QC080000 and product certifcations such as UL, TUV, and VDE.
