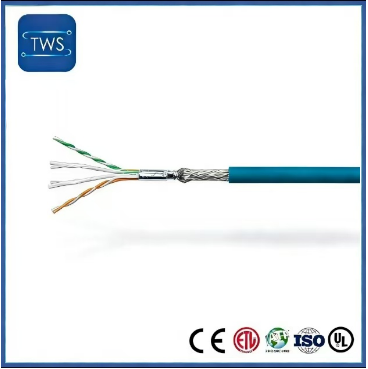

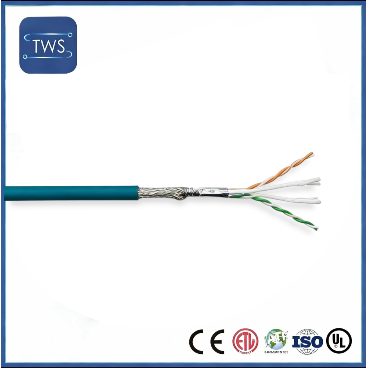

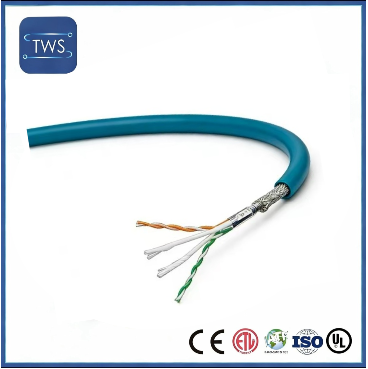

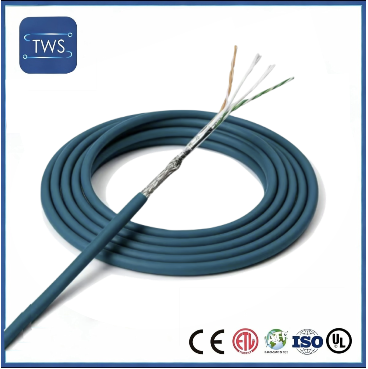

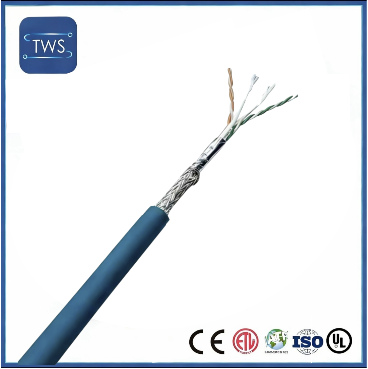

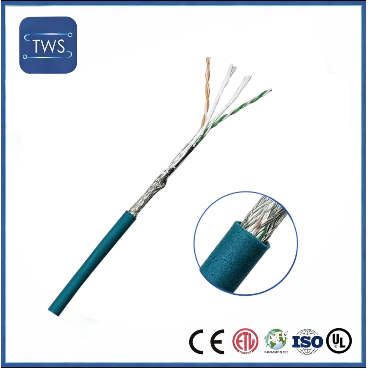

This 2-pair shielded cable is designed for reliable, interference-free data transmission in industrial and commercial environments, featuring a robust structure to balance high signal integrity with mechanical durability
2 pairs of bare copper wire (7/0.16±0.008 mm) ensure excellent electrical conductivity, low signal attenuation, and flexibility for consistency.
Insulated HDPE of standard 0.21mm thickness with a specified outer diameter of 0.90±0.05 mm is colored in pairs (Green-White/Green, Orange-White/Orange) to simplify installation and ease phase identification, delivering reliable electrical isolation and moisture resistance.
A cotton filler keeps cable round shape and maintains stability of core structure and Mylar tape binder fixes internal components to reduce signal cross-talk and mechanical stress.
Al/Mylar tape shield (≥25% overlap), 80% covered by tinned copper wire braid (16/8/0.10±0.008 mm), creates a dual-layer defense against electromagnetic interference (EMI) and radio frequency interference (RFI) for excellent signal integrity.
A heavy-duty PVC jacket (0.65 mm thickness, 5.40±0.20 mm OD) in a distinctive green color offering superior resistance to abrasion, oil and temperature fluctuations for durability.
Function
Delivers stable, low-loss data transmission across 2 pairs, supporting high-speed protocols such as Ethernet and industrial communication links.
The dual shielding system (Al/Mylar tape + copper braid) effectively blocks external EMI/RFI, preventing signal degradation and cross-talk between pairs for accurate data transfer.
HDPE insulation minimizes signal attenuation, ensuring consistent performance even over long cable runs.
The cotton filler and Mylar tape binder maintain core stability, reducing internal friction and extending the cable’s operational lifespan.
Color-coded conductors and a green jacket enable quick visual circuit identification, reducing installation time and maintenance errors.
| Item | Description | |
| Conductor | Qty.(Pair) | 2 |
| Material | Bare copper wire | |
| Construction | 7/0.16± 0.008 | |
| Insulation | Material | HDPE |
| Braid | Material | Tinned copper wire |
| Construction | 16/8/0.10±0.008 | |
| Jacket | Material | PVC |
| O.D. | 5.40±0.20 | |
| Color( RAL) | Green | |
Industrial Automation: Ideal for PLC systems, sensor networks, and industrial Ethernet for its resistance to EMI, vibration and mechanical stress
Commercial Buildings: applicable to structured cabling in offices, retail spaces and data centers for reliable high-speed data and voice transmission
Security & Surveillance: Deployed in CCTV and access control systems for interference-free signal transmission for clear video and data
Telecommunication: Suitable for outdoor telecommunication links and public networks as the PVC jacket provides protection against moisture and UV radiation
 |  |  |
 |  |  |
