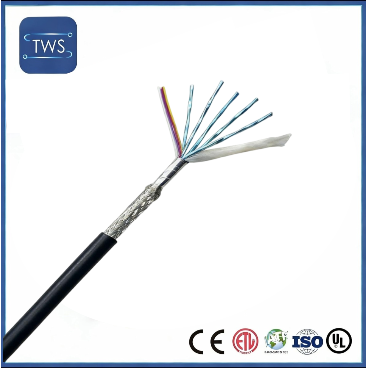

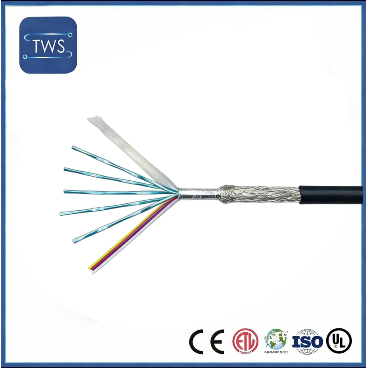

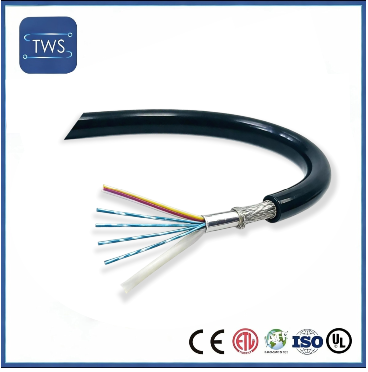

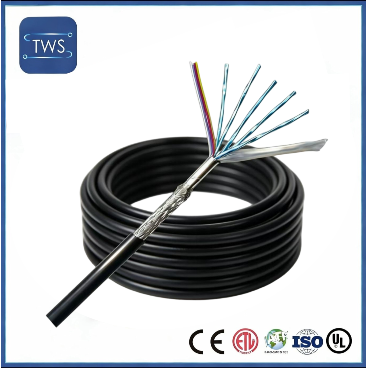

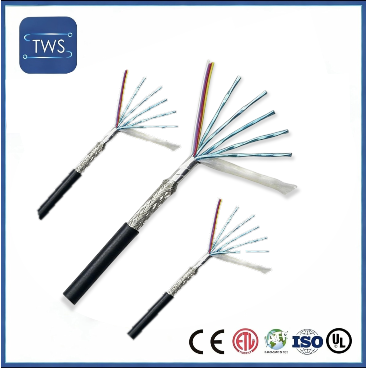

This multi-specification cable consist of three distinct unit (Unit A, Unit B, Unit C) to realize multi-functions and high-performance signal &power transmission across industrial, commercial, and consumer scenarios. It features layered shielding, robust insulation, and a durable jacket to ensure reliable operation in challenging environments.
Modular Conductor Design:
· 4 pairs (unit A) of tinned copper wire (7/0.055±0.008 mm) with HDPE insulation offers balanced conductivity and corrosion resistance for multi-channels data transmission.
· 1 pair (Unit B )of tinned copper wire (7/0.05±0.008 mm) with HDPE insulation optimizes single-pair signal links in space-constrained scenario.
· 4 cores (Unit B)of tinned copper wire (7/0.06±0.008 mm) with reinforced 150D nylon layer plus HDPE insulation provide enhanced mechanical strength for power and signal circuits.
Al/Mylar tape (15% overlap), separated by hot-melted Mylar tape (15% overlap), blocks EMI/RFI and prevents cross-talk between channels.

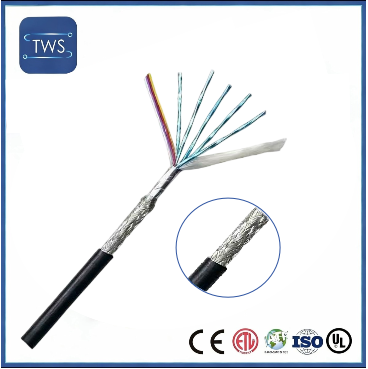

an outer hot-melted Al/Mylar tape shield (≥25% overlap) with a tinned copper braid(90% coverage) creates a dual-layers defense against extreme interference.
HDPE insulation (0.11–0.14 mm thickness) provides reliable electrical isolation, low signal loss, and resistance to moisture.
A durable TPU jacket (0.30 mm thickness, 4.20±0.10 mm OD) delivers superior resistance to abrasion, oil, and temperature fluctuation and this black sheath provide a professional appearance.
Tinned copper drain wires and nylon fillers ensure electrical connectivity, mechanical stability, and stress relief in dynamic installations.
Synchronized Transmission: Supports power and data transfer simultaneously across 4pairs -1pair - 4cores configuration to meet diverse connectivity needs in a single cable.
EMI/RFI resistance: The layered shielding system (Al/Mylar tape + copper braid) actively blocks external interference to ensure signal integrity in high-electrical noise environments.
Mechanical Resilience: reinforced Nylon layer with TPU jacket and stress-relief draining wires protect against vibration, bending, and chemicals to extend service life.
Cross-Talk Prevention: Mylar tape separates internal units physically to minimize signal interference between channels to ensure consistent, error-free performance.
| Item | Description | ||
| UnitA | UnitB | ||
| Conductor | Qty.(Pair) | 4P | 1P |
| Material | Tinned copper wire | Tinned copper wire | |
| Construction | 7/0.055± 0.008 | 7/0.05± 0.008 | |
| Insulation | Material | HDPE | HDPE |
| UnitC | |||
| Conductor | Qty.(Cond) | 4C | |
| Material | Tinned copper wire | ||
| Construction | 7/0.06± 0.008+150D Nylon | ||
| Insulation | Material | HDPE | |
| Braid | Material | Tinned copper wire | |
| Construction | 16/10/0.08±0.008 | ||
| Jacket | Material | TPU | |
| O.D. | 4.20±0.10 | ||
| Color( RAL) | Balck | ||
Industrial Automation: Ideal for PLC systems, robotics, and servo motor wiring requiring multi-channels data/power links and EMI resistance
Medical Devices: applied to monitoring systems and diagnostic equipment for its low signal loss and bio-compatible materials to realize reliable performance
Aerospace & Defense: Deployed in avionics and ground control systems for its robust structure and EMI shielding ensuring smooth operation in harsh environments
Consumer Electronics: Suitable for high-end audio/video equipment and gaming peripherals for loss-free signal transmission and mechanical durability
Transportation: applicable to vehicle information and sensor networks to resist vibration, oil and temperature fluctuations
 |  |  |
 |  |  |
Founded in July 2001, Tri Wire Scientifc Co.,Ltd. is a high technology enterprise with a registered capital of 20 milion RMB. lts factory of around 12,000 m2 is located in Xicheng Science and Technology Industrial Park, Hengli Town, Dongguan City, Guangdong Province.
The company has been engaged in wire and cable manufacturing over 20 years and its key products include LAN Cables, High-Frequency Cables, Cables for Medical systems, Cables for Automobiles, Cables for industry, etc. As a professional OEM/ODM service provider, Triwire has been exported its products to Europe and the United States and fond by many well-known multinational companies with products of international first-class standards.
Technological innovation and quality control are the comerstones of the company's development. Triwire is recognized as a "High Technology Enterprise" as well as a "Specialized,Refned,Characteristic,and innovative Small and Medium-Sized Enterprise (SME)" in Guangdong Province. lt is also members of the Guangdong New Energy Vehicle Industry Association, the Shenzhen Robot Special Cable Industry Association, and the Guangdong Wire and Cable industry Association. Currently, the company holds 38 patents and added utility model patents such as "Communication Cables and Electrical Equipment"in 2025, thus established a sound R&D system. Triwire has passed system certifcations including ISO9001, ATF16949, and IECQ QC080000 and product certifcations such as UL, TUV, and VDE.
Q1: How can I place an order?
A: You can contact us by email about your order details, or place order online.
Q2: Does your company provide OEM&ODM services?
A: Yes we can produce cables by your samples or technical drawings.
Q3: Does your company test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q4: Do you have some discounts?
A: Sure, the price is negotiable. We will definitely give a discount based on your annual order.
Q5: How long is your delivery time?
A: According to your order quantity and destinations
Q6: What is your terms of payment?
A: T/T 30% as deposit, and 100% before delivery.
