TWS 1HD-2301B0101

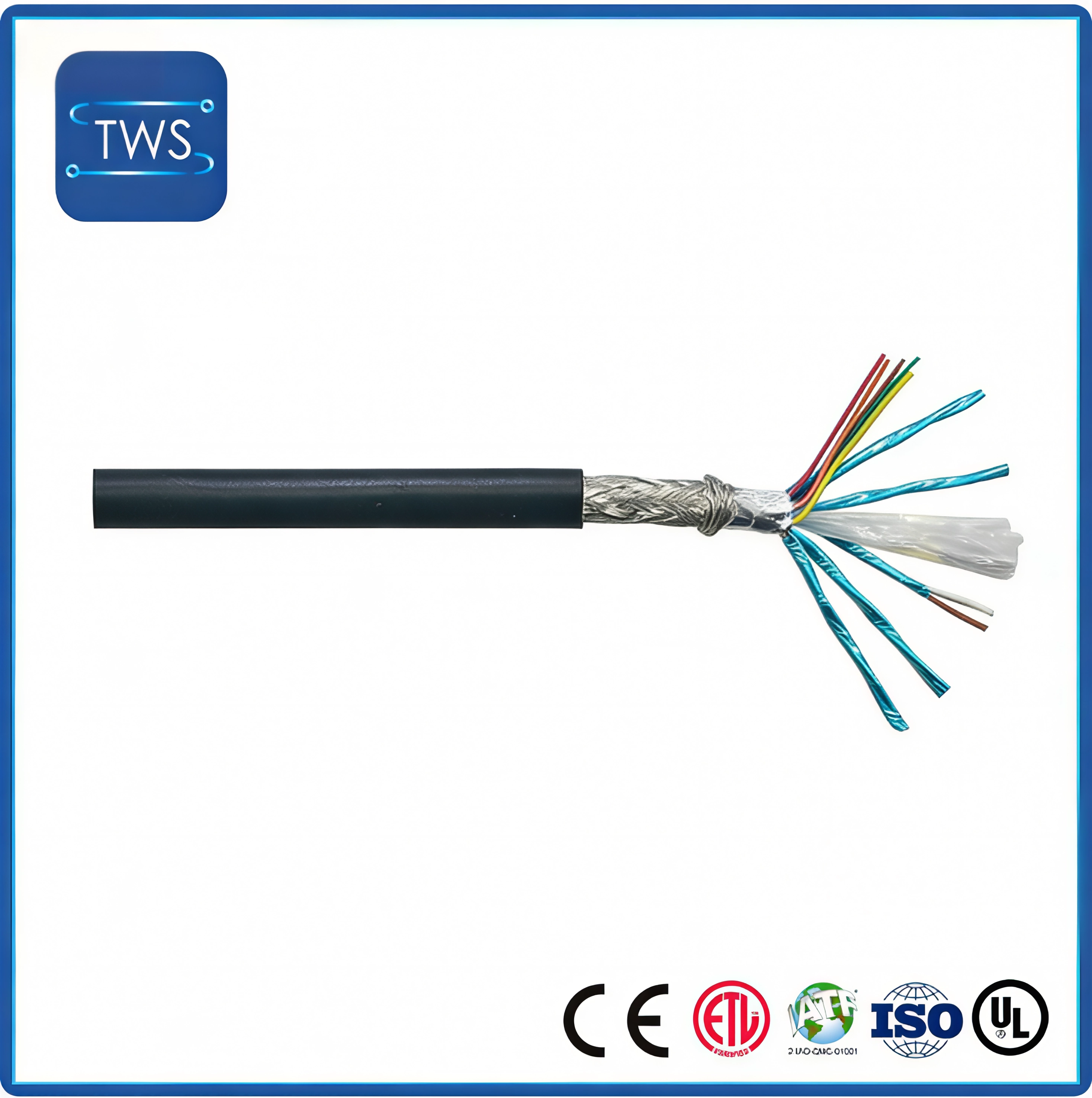

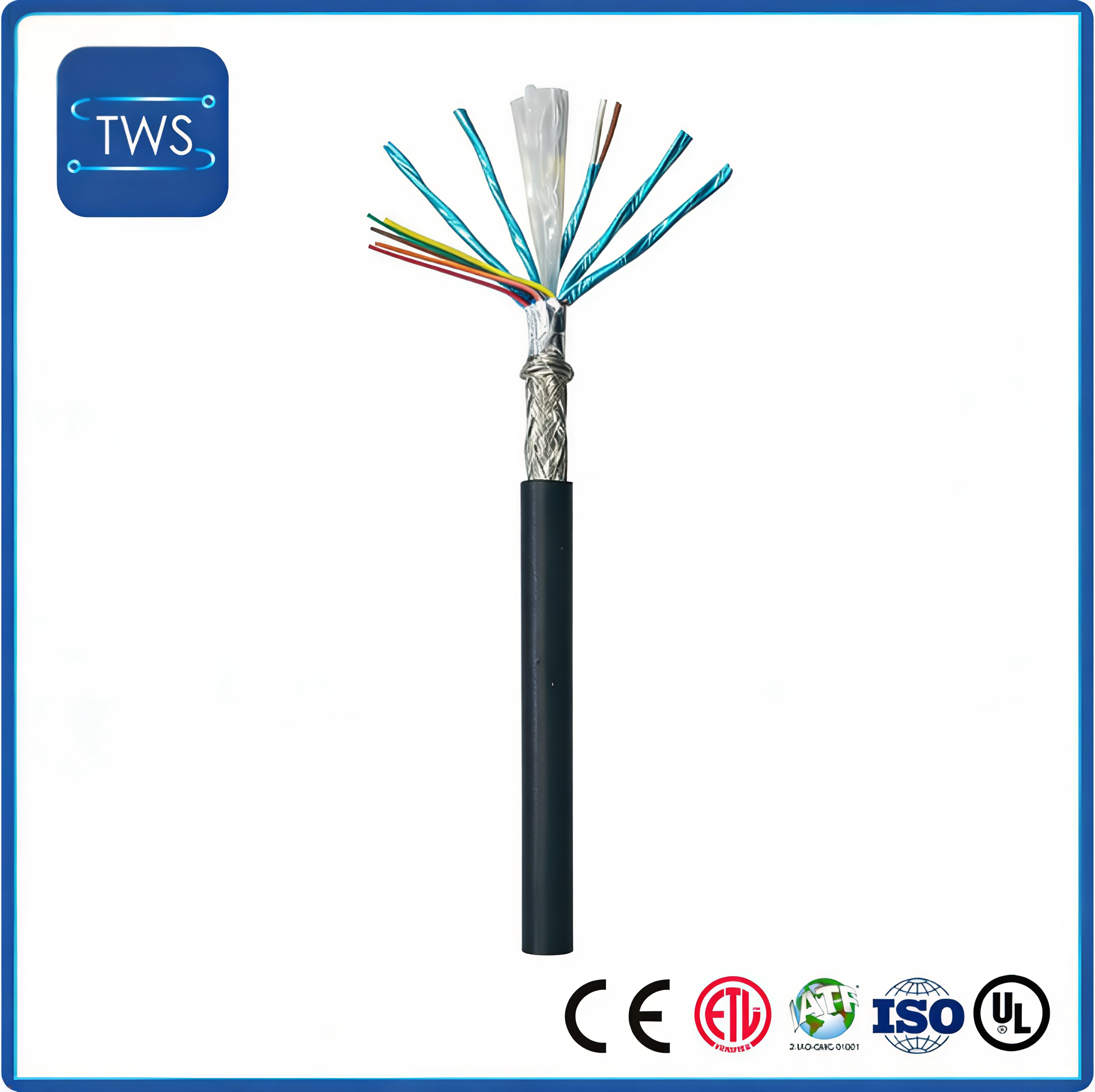

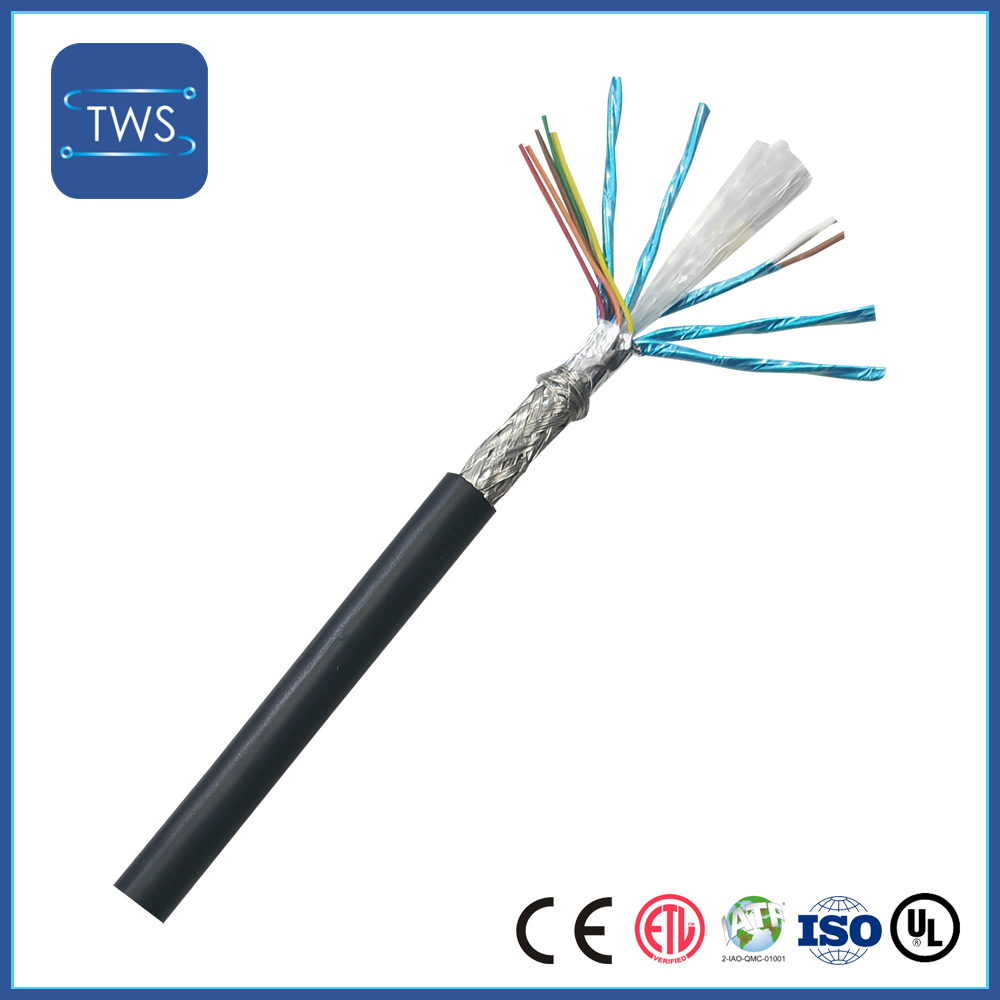

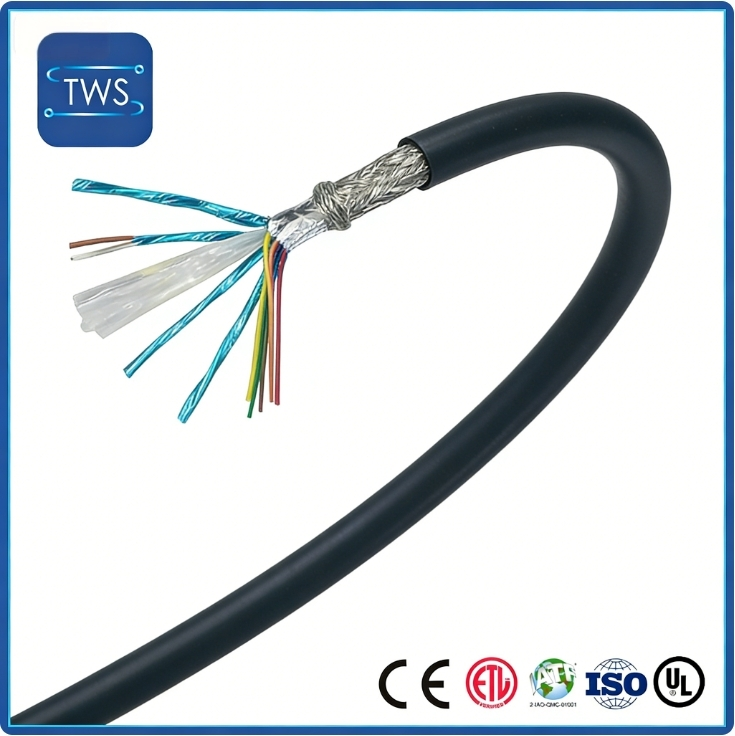

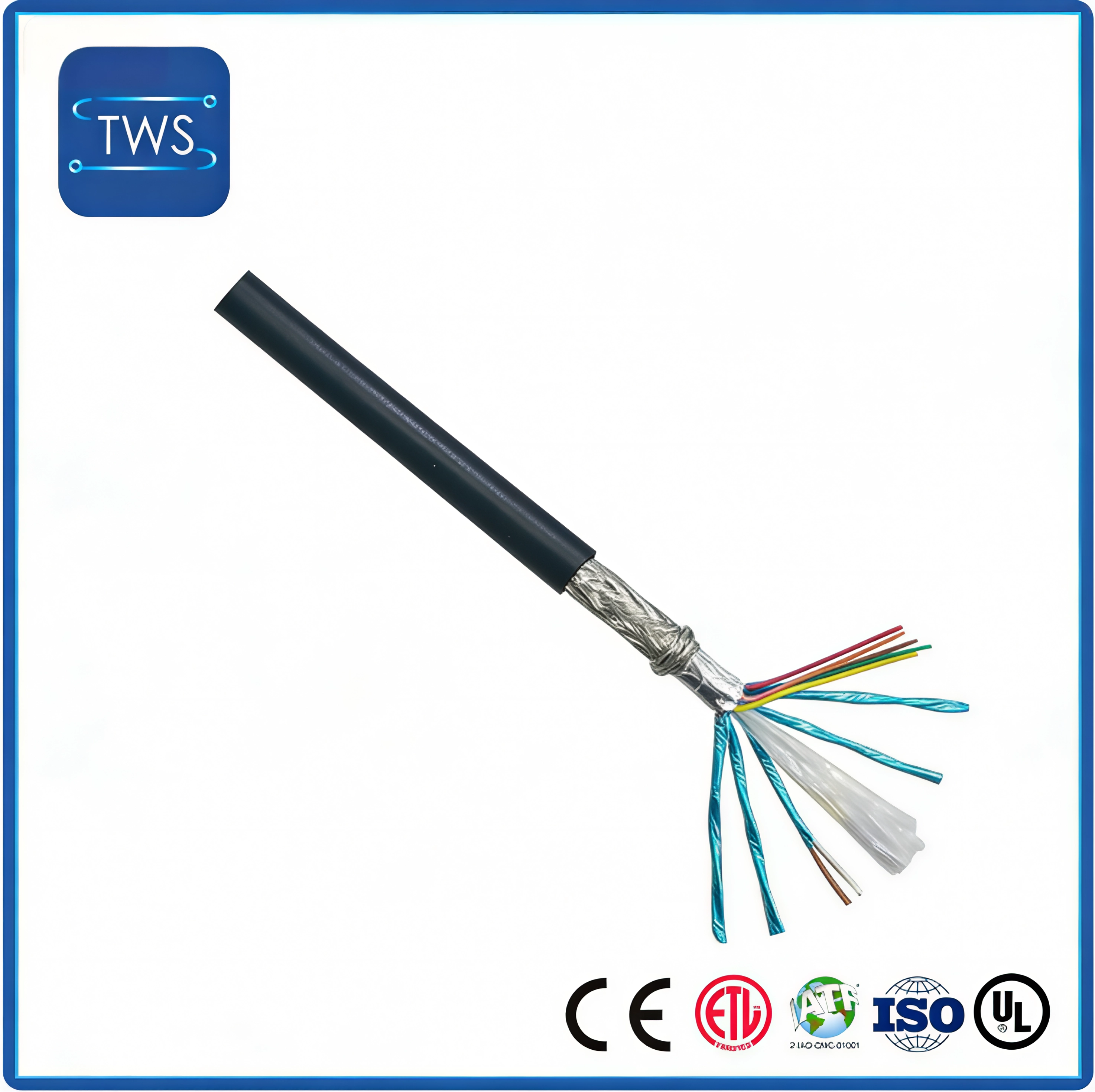

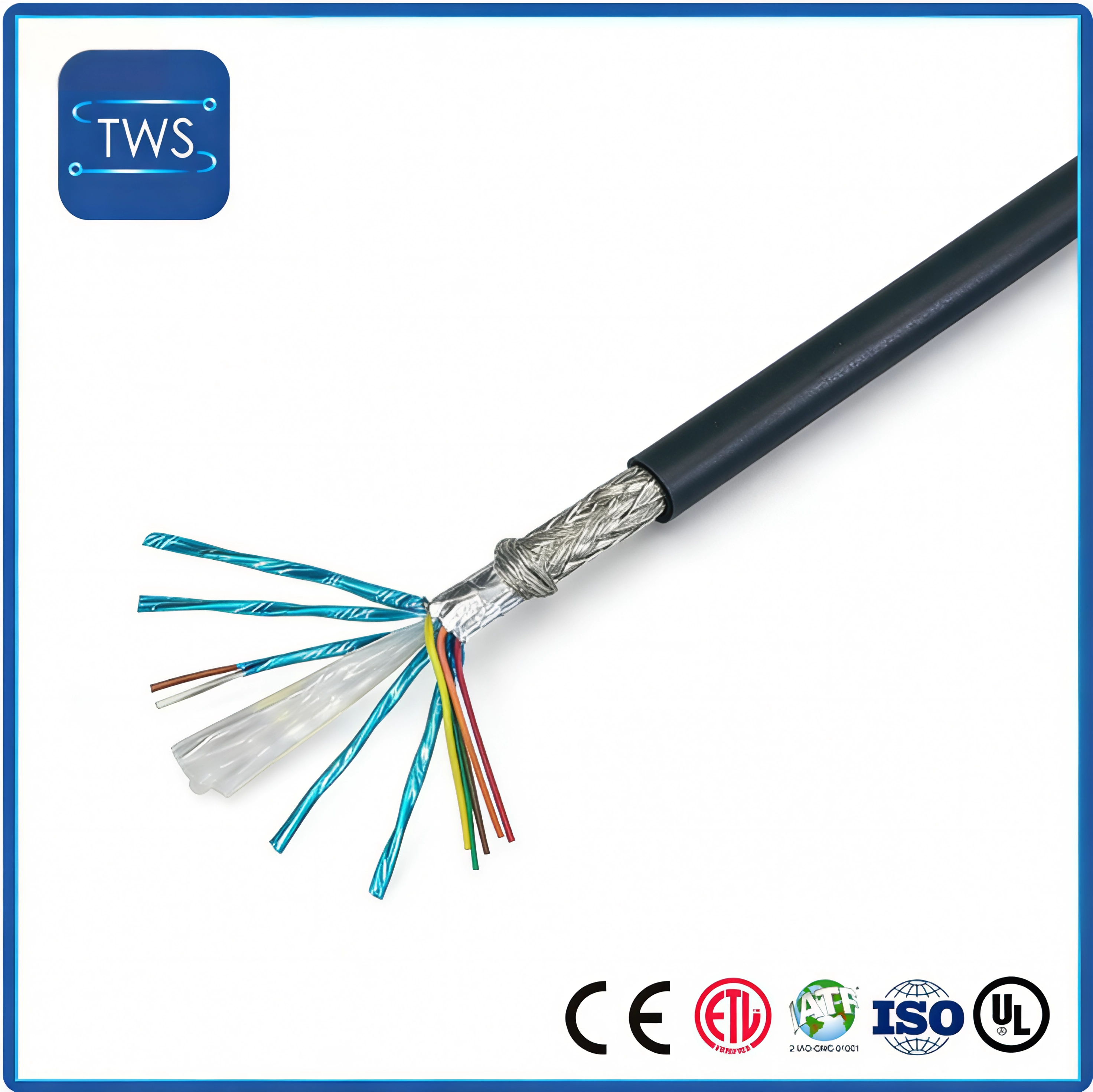

This is a finished high-frequency DP cable complying with UL20276 standard. It features 30AWG tinned copper conductors with a construction of 7/0.10mm. The insulation adopts Foam PE + skin (foamed PE + skin insulation) for superior high-frequency signal transmission. The cable has a composite structure of 5 pairs + 5 cores (5P+5C), equipped with dual AB shielding and a 16/11/0.10mm tinned copper grounding braid.
| Item | Description | |
| Conductor | Qty.(Pair) | 5P+5C+AB |
| Material | Tinned copper wire | |
| Construction | 7/0.10 | |
| Jacket | Material | PVC |
| O.D. | 6.5±0.2 | |
| Color( RAL) | Balck | |
 |  |  |
 |  |  |
Founded in July 2001, Tri Wire Scientifc Co.,Ltd. is a high technology enterprise with a registered capital of 20 milion RMB. lts factory of around 12,000 m2 is located in Xicheng Science and Technology Industrial Park, Hengli Town, Dongguan City, Guangdong Province.
The company has been engaged in wire and cable manufacturing over 20 years and its key products include LAN Cables, High-Frequency Cables, Cables for Medical systems, Cables for Automobiles, Cables for industry, etc. As a professional OEM/ODM service provider, Triwire has been exported its products to Europe and the United States and fond by many well-known multinational companies with products of international first-class standards.
Technological innovation and quality control are the comerstones of the company's development. Triwire is recognized as a "High Technology Enterprise" as well as a "Specialized,Refned,Characteristic,and innovative Small and Medium-Sized Enterprise (SME)" in Guangdong Province. lt is also members of the Guangdong New Energy Vehicle Industry Association, the Shenzhen Robot Special Cable Industry Association, and the Guangdong Wire and Cable industry Association. Currently, the company holds 38 patents and added utility model patents such as "Communication Cables and Electrical Equipment"in 2025, thus established a sound R&D system. Triwire has passed system certifcations including ISO9001, ATF16949, and IECQ QC080000 and product certifcations such as UL, TUV, and VDE.
Q1: How can I place an order?
A: You can contact us by email about your order details, or place order online.
Q2: Does your company provide OEM&ODM services?
A: Yes we can produce cables by your samples or technical drawings.
Q3: Does your company test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q4: Do you have some discounts?
A: Sure, the price is negotiable. We will definitely give a discount based on your annual order.
Q5: How long is your delivery time?
A: According to your order quantity and destinations
Q6: What is your terms of payment?
A: T/T 30% as deposit, and 100% before delivery.
